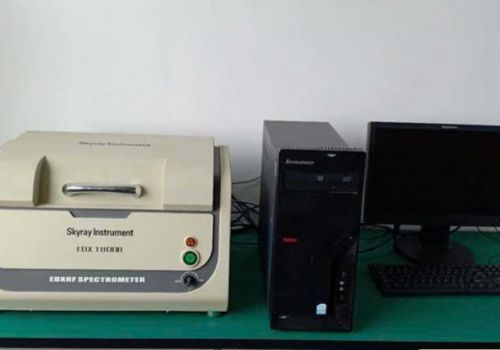

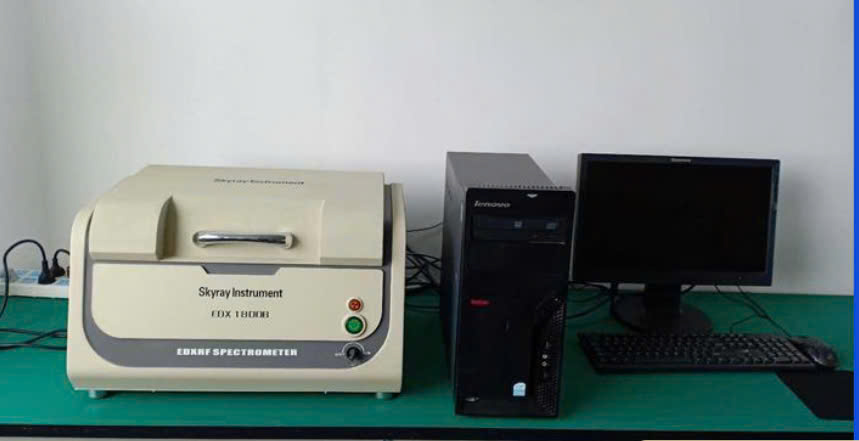

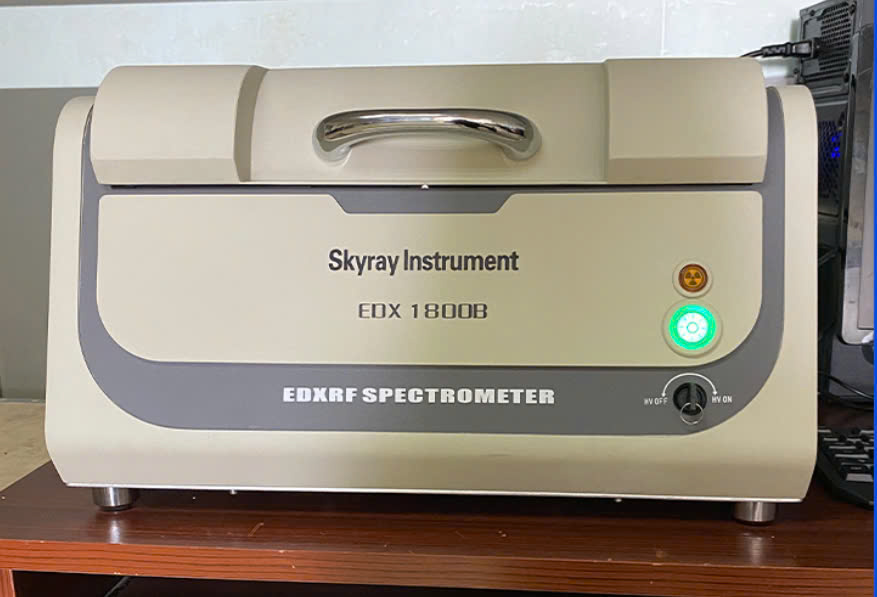

Máy XRF/ Máy quang phổ tia X/EDX1800B
Giá liên hệ
Giới thiệu sản phẩm:
For the wide application of EDX1800 in various fields, the EDX1800B is specially designed according to the requirements of optimizing product performance and improving safety protection level. Application of a new generation of high-voltage power supply and X-ray tube to improve product reliability; use the high power of the new X-ray tube to improve the testing efficiency of the instrument.Giới thiệu sản phẩm chi tiết:
Performance characteristics:
Down-lighting: to meet the testing needs of various shapes of samples
Collimators and filters: Electric switching of a variety of collimators and filters to meet a variety of test applications
Mobile platform: fine manual mobile platform for easy positioning of test points
High resolution detectors: Improve the accuracy of your analysis
A new generation of high-voltage power supplies and X-ray tubes: stable and reliable performance, up to 50W for higher test efficiency
Technical indicators:
Elemental analysis ranges from sulfur (S) to uranium (U)
Analytical detection limit up to 1ppm
Analytical content is generally from 1ppm to 99.99%
Any number of selectable analysis and recognition models
Mutual independent matrix correction model
Multivariate nonlinear regression procedure
Temperature adaptation range is 15 ° C to 30 ° C
Power supply: AC 220V ± 5V, it is recommended to configure AC purification power supply
Energy resolution: 160±5eV
Appearance size: 550 × 416 × 333mm
Sample cavity size: 460 × 298 × 98mm
Weight: 45Kg
Standard configuration:
Mobile sample platform
Electric refrigeration Si-PIN detector
Signal detection electronic circuit
High and low voltage power supply
High power X-ray tube
Computer and inkjet printer
Application field:
RoHS, halogen detection analysis
Composition analysis of geology and minerals (copper, stainless steel, etc.)
Determination of thickness of metal plating, determination of plating solution and coating content
Performance characteristics:
Down-lighting: to meet the testing needs of various shapes of samples
Collimators and filters: Electric switching of a variety of collimators and filters to meet a variety of test applications
Mobile platform: fine manual mobile platform for easy positioning of test points
High resolution detectors: Improve the accuracy of your analysis
A new generation of high-voltage power supplies and X-ray tubes: stable and reliable performance, up to 50W for higher test efficiency
Technical indicators:
Elemental analysis ranges from sulfur (S) to uranium (U)
Analytical detection limit up to 1ppm
Analytical content is generally from 1ppm to 99.99%
Any number of selectable analysis and recognition models
Mutual independent matrix correction model
Multivariate nonlinear regression procedure
Temperature adaptation range is 15 ° C to 30 ° C
Power supply: AC 220V ± 5V, it is recommended to configure AC purification power supply
Energy resolution: 160±5eV
Appearance size: 550 × 416 × 333mm
Sample cavity size: 460 × 298 × 98mm
Weight: 45Kg
Standard configuration:
Mobile sample platform
Electric refrigeration Si-PIN detector
Signal detection electronic circuit
High and low voltage power supply
High power X-ray tube
Computer and inkjet printer
Application field:
RoHS, halogen detection analysis
Composition analysis of geology and minerals (copper, stainless steel, etc.)
Determination of thickness of metal plating, determination of plating solution and coating content
