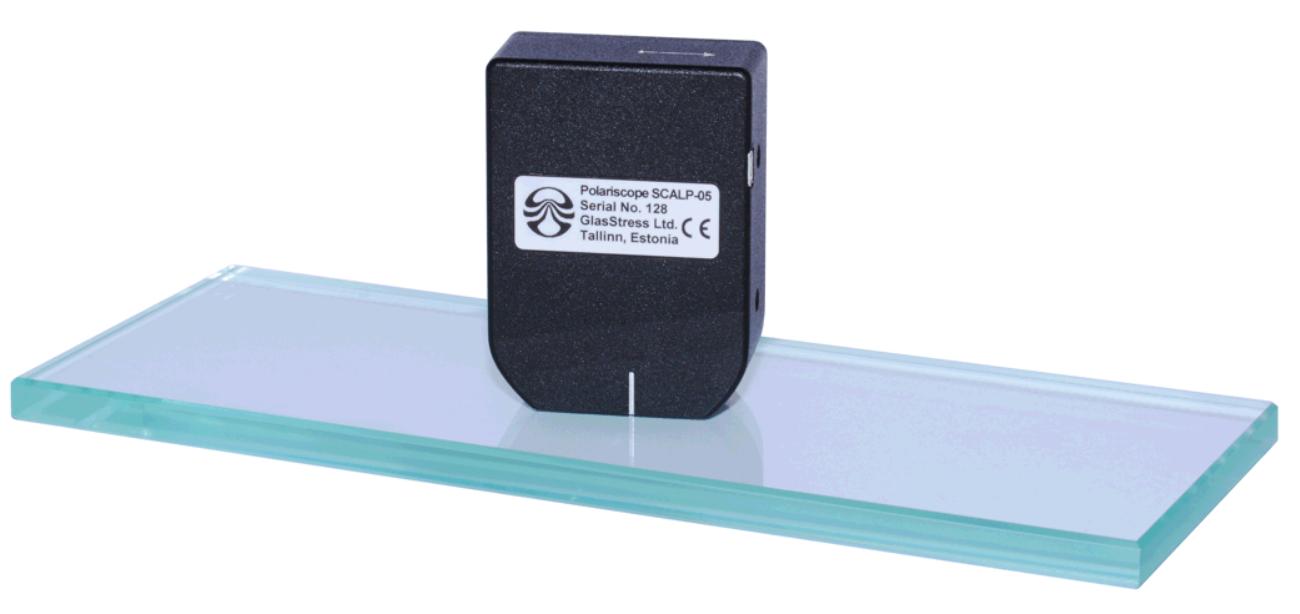

Máy phân tích ứng suất thông minh cầm tay SCALP-05/ SCALP-05 Scattered Light Polariscope

Specifications
Dimensions (L*W*H): 56*28*76 mm

Weight: 177 g

Communication interface: USB 2.0

Power supply: USB bus

Power consumption: 1.0 W

Laser wavelength: 635 nm

Laser output power:

Sensor resolution: 1280*1024 pixels

Software requirements: Windows 11

Measurable glass: Flat and curved glass (r > 300 mm)

Measurable surface: Air and tin side

Minimum measurable thickness:

Maximum measurable depth: 6 mm (on glass with any thickness)

Measurement time: 1-6 seconds, default 3 seconds

Minimum surface stress: 1 MPa

Maximum stress: Not limited

Precision:

Operating conditions: +10 … +50 °C (with some thermal isolation down to -10 °C)

Humidity: 0 – 90 % R.H. (non-condensing)

Ambient light: Direct sunlight must be avoided
